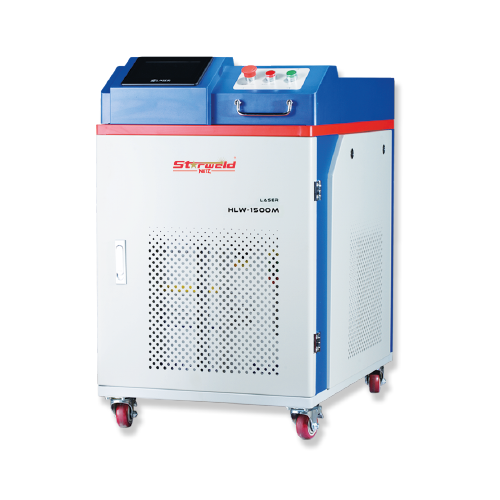

NIETZ Handheld Laser Welding
CODE: HLW1500M
Product Description:
- Product Description: Starweld handheld laser welding machine is an advanced fiber laser welding machine equipped with the latest wobble welding head to fulfill your welding needs.
- Low heat and deformation on metal work, does not require touch up or post processing on welded metal.
- Faster and smoother welding compared to ARC welding.
- Easier operation means low requirement for welder skill.
- Lower radiation and pollution.
- Lower energy consumption compared to ARC welding.
- Optional consumables.
- Metal cabinet and shelf
- Kitchen and bathroom
- Stairs and elevators
- Metal doors and windows
- Precision and medical devices
- Automotive and robotic welding
- Welding Power: 1500W
- Laser Generator: Reci
- Laser Wavelength: 1070 NM
- Fiber Length: Standard: 10m Max: 15m
- Operation Mode: Continuous / Modulation Wave
- Welding Speed: 0 ~ 120mm/s
- Cooling Mode: Industrial Thermostatic Water Tank
- Operating Ambient Temperature: 15 ~ 35°C
- Operating Ambient Humidity: <70% RH

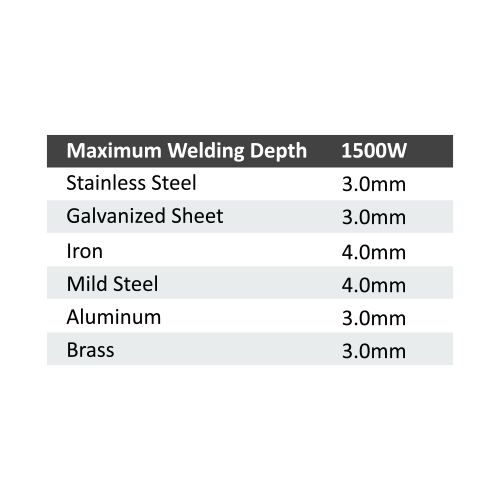

- Better Performance Depth: 1.0 - 2.0mm
- Welding Gap Requirements: ≤0.5mm
- Operating Voltage: AC220V
- Rated Input Current: 16A - 30A
- Machine Size: 900 x 670 x 975mm
- Machine Weight: 168kg
- Recommended Gas: Argon

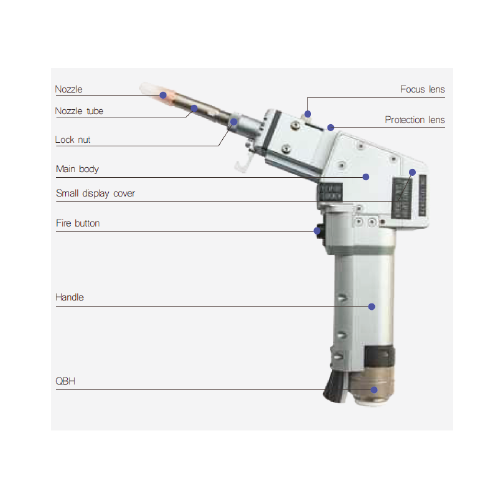

- Handheld welding head is the major component, containing focus lens, linked with optical fiber, where the laser is transmitted and focused to process work pieces.
- Handheld welding torch with 10M cable x1 piece
- Wire-feeder x1 piece
- Wire feeding hose with 4M cables x2 pieces (1 pc for carbon steel, 1 pc for Aluminum)
- Nozzle x5 pieces
- Protection lens x5 pieces
- Aluminum accessories x1 set
- Earth clamp with 10M cable x1 piece
