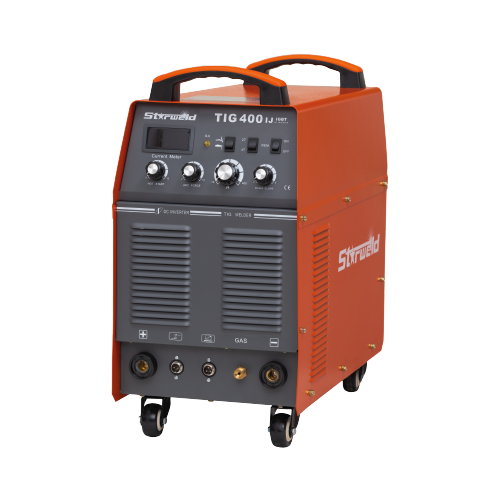

NIETZ TIG Series Welding Machine (TIG 400IJ)
CODE: NZ_SWTIG400IJ
Product Description:
- Model: TIG 400IJ
- Invertor Technology: IGBT MODULE
- Net Weight: 29.5 kg
- Machine Dimension: 550 x 285 x 510mm ±
- TIG 400IJ is equipped with industrial-grade IGBT module components. This modular design TIG welding system includes a water cooler as optional.
- Industrial-grade IGBT module inverter technology
- Heavy-duty industrial welder
- TIG / MMA function
- HF ARC ignition 2T / 4T repeat
- Hot start function
- ARC force function
- 35 - 50mm socket
- Earth Clamp with 3m cable 500A
- 3m 500A Electrode Holder Cable
- 8M WP218 TIG Torch
- Gas Hose
- 2pcs Hose Clamp
- Input Voltage (V): AC415V-50/60Hz
- Input Power (KW): 18.2
- Rated Input Current (A): 20.0 / 27.6
- Output Current Range (A): TIG 10 ~ 400 / MMA 30 ~ 400
- Rated Output Voltage (V): 26 / 36
- No-load Loss (W): 100
- No-load Voltage (V): 70
- Duty Cycle (%): 100
- Power / Insulation Grade: IP21 S/F
- Welding Process: TIG / MMA
- Recommended Electrode Dimension: 4.0 / 5.0mm (for MMA mode)
- Gas: Argon / Unnecessary
- Packing Dimension: 660 x 390 x 610mm ±
- Welding Shield
- Welding Glove
- Slag Remover
- Argon Regulator
